Products
The M10 Micro Gas Turbine
A compact, oil-free microturbine platform delivering ultra-low emissions, fuel flexibility, modular integration, and unmatched simplicity for decentralized power generation.
- Ultra-low NOx thanks to flameless combustion
- No methane slip
- Total fuel flexibility, including natural gas, biogas, and process gases
- Oil-free operation with gas foil bearings
- No gearbox thanks to integrated high-speed generation
- Low maintenance and high reliability
- Compact footprint and modular architecture
Designed for simplicity, performance, and flexibility

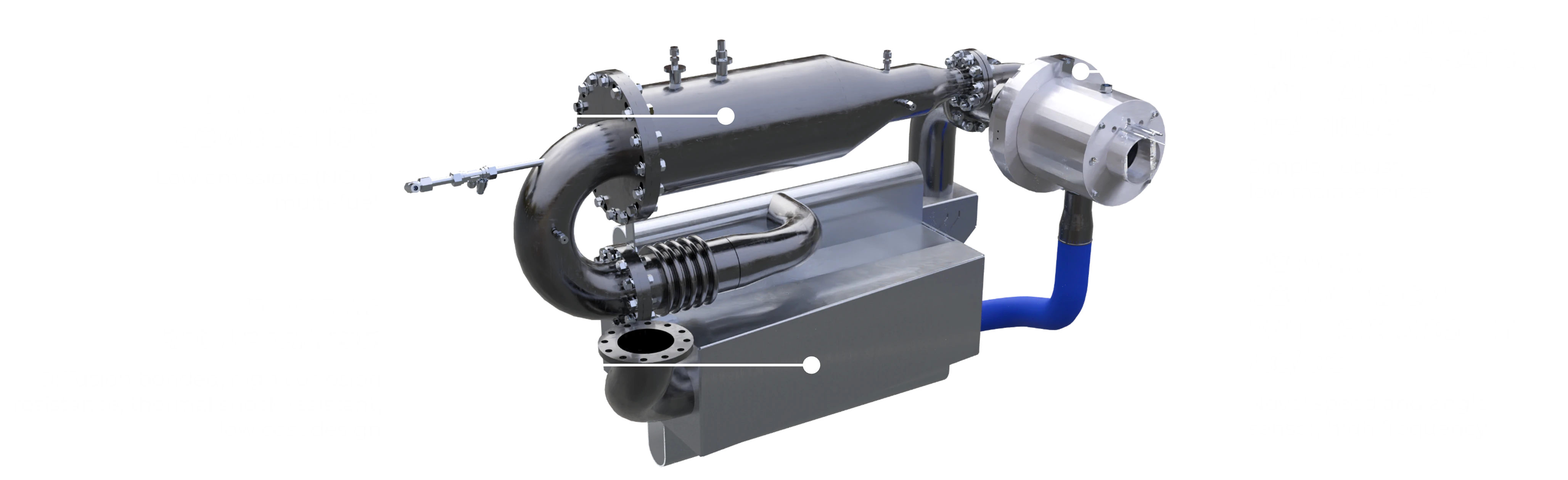

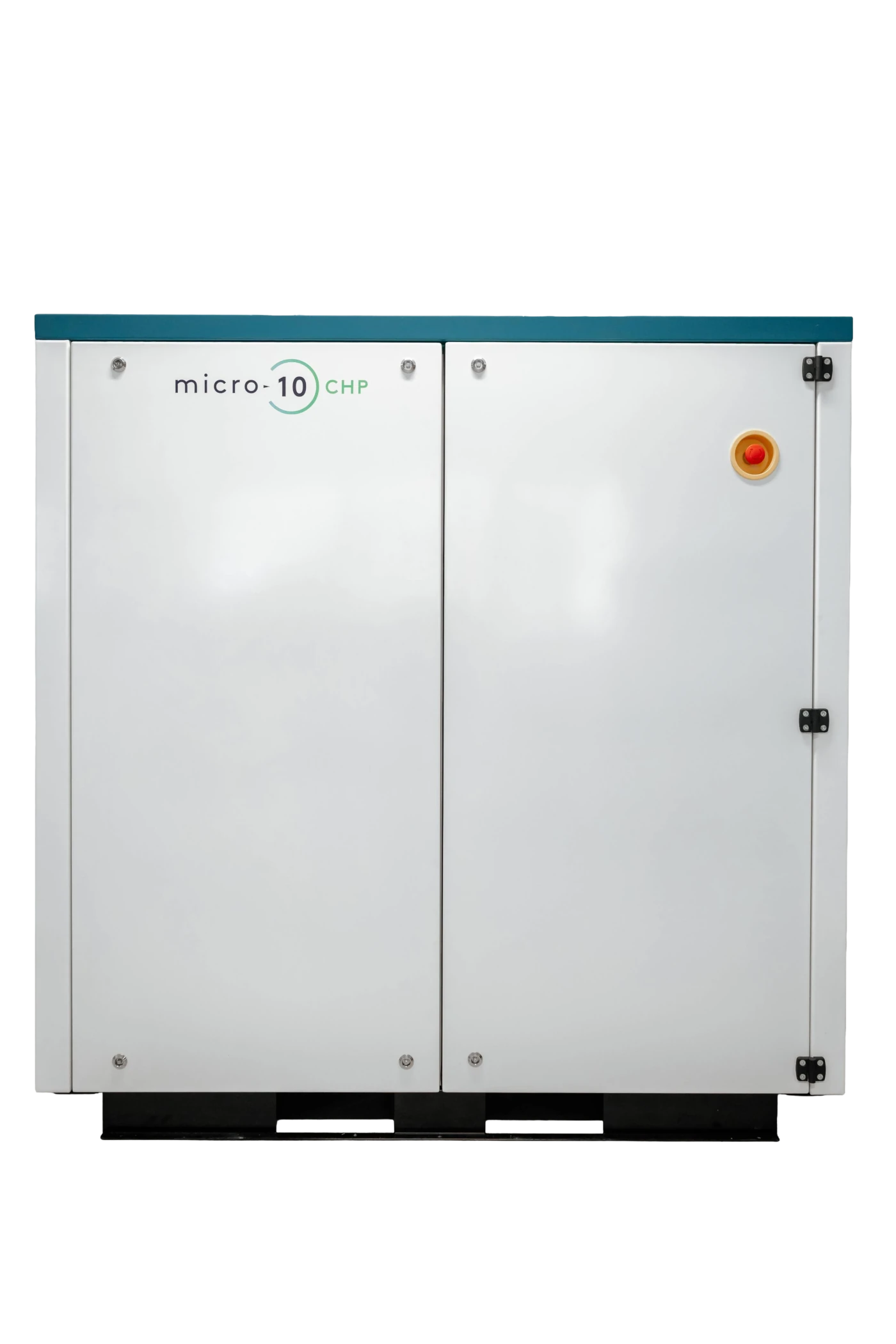

The M10 is a compact 10 kWe class oil-free micro gas turbine designed for decentralized power generation, methane abatement, and low-carbon energy applications. Its architecture combines high-speed turbomachinery, flameless combustion, and modular integration to deliver high efficiency with extremely low emissions.
Why the M10 stands out
Flameless combustion
Advanced flameless combustion enables ultra-low NOx emissions while maintaining stable operation across a wide fuel range, including low-LHV and challenging gases.
Oil-free architecture
Gas foil bearings eliminate the need for lubrication oil, pumps, filters, and related auxiliaries, reducing maintenance, complexity, and operating costs.
Integrated high-speed generation
The generator is directly integrated into the high-speed rotor, avoiding the need for a complex gearbox while improving compactness, efficiency, and robustness.
A modular core engine built for low-maintenance service
The M10 has been engineered with a highly modular mechanical architecture enabling easy assembly, disassembly, inspection, and maintenance. This is a major advantage for customers and service partners seeking low operating costs, fast field intervention, and straightforward servicing.
Flexible electrical integration
The M10 operates on a DC bus architecture, allowing integration with a wide range of commercially available inverters, including bidirectional systems.
This gives customers, integrators, and partners the freedom to select the inverter solution best suited to their grid, storage, or hybrid application, while greatly simplifying grid connection and avoiding unnecessary certification complexity on the turbine side.
Scalable and easy to parallelize
Multiple M10 units can be connected in parallel on a common DC bus, enabling scalable power architectures from single-unit systems to larger multi-machine installations.
This modular power-building-block approach is particularly attractive for integrators seeking flexible deployment, phased installation, redundancy, and adaptation to evolving project needs.
Open integration with off-the-shelf inverter platforms
By interfacing on the DC side, the M10 can be combined with widely available inverter platforms, battery systems, and hybrid architectures. This is especially attractive for system integrators because it enables fast project tailoring without locking the turbine into a single grid-interface solution.
Microturbine systems
Standard and customized micro gas turbine systems based on the M10 platform for distributed power generation, CHP, methane abatement, and hybrid energy applications.
Hybrid energy systems
Integrated architectures combining the M10 with batteries, inverters, renewable generation, and DC bus systems for resilient and flexible decentralized energy solutions.
Custom developments
Application-specific product developments and packaged solutions tailored to customer requirements, operating conditions, and deployment environments.
